JGX-0480A-37A Customized Steel Wire Rope Vibration Isolator for Precise Vibration Control Solutions

Xi'an Hoan Microwave Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

JGX-0480A-37A Customized Steel Wire Rope Vibration Isolator for Precise Vibration Control Solutions

  • 1
  • 2
  • 3

Brand Name : Hoan

Model Number : JGX-0480A-37A

Certification : ISO9001:2015

Place of Origin : China

MOQ : 4

Payment Terms : L/C,D/A,T/T,D/P,Western Union,MoneyGram

Shock Rsistance : 30g/11ms

Height : 51mm

Accessories : Net

Mounting Thread Size : M6

Applicable Industries : Energy & Mining

Product Load Capacity : Customizable

Machinery Test Report : Provided

Warranty : 1 Year

Wire Rope Diameter : 3mm

Shock Absorption : Excellent

Mounting Hole Size : 8mm

Applications : Marine and Industrial Engine Mounts

Working Temperatu : : -55 ~ +120

Vibration Isolation Type : Wire Rope

Corrosion Resistance : High

Contact Now

JGX-0480A series

The JGX-0480A series steel wire rope vibration isolators from Xi'an Hoan Microwave Co., Ltd. meet diverse needs through customized services, providing clients with precise vibration control solutions. By adjusting the diameter, number of coils, and layout of the steel wire ropes, the product can achieve matching of different stiffness and damping characteristics, adapting to wide-range vibration isolation requirements from low to high frequencies.


This series of vibration isolators not only boasts excellent mechanical performance but also undergoes rigorous environmental tests such as salt spray and damp heat to ensure long-term effectiveness in harsh conditions. Its non-magnetic and radiation-resistant properties make it particularly suitable for special scenarios like medical equipment and satellite communications. Additionally, Hoan Microwave offers professional technical support and dynamic simulation analysis to help users optimize the design of vibration reduction systems. With flexible and reliable performance, the JGX-0480A series has become a benchmark for vibration reduction in high-end industrial and defense fields.

JGX-0480A-37A Customized Steel Wire Rope Vibration Isolator for Precise Vibration Control Solutions

Model “H”±3.30 “W” Unit weight Mounting options Thru hole(mm) Thread(mm) C'sink(°)
JGX-0480A-75A 30 36 0.304 D ∅6.9±0.13 M6×1.0 90
JGX-0480A-72A 33 38 0.32
JGX-0480A-61A 36 41 0.336 B,D,E
JGX-0480A-59A 38 43 0.336 A,B,C,D,E,S
JGX-0480A-52A 41 46 0.352
JGX-0480A-50A 43 48 0.4
JGX-0480A-37A 51 58 0.416
JGX-0480A-24A 54 75 0.432
JGX-0480A-18A 62 88 0.448
JGX-0480A-12A 81 107 0.464

JGX-0480A-37A Customized Steel Wire Rope Vibration Isolator for Precise Vibration Control Solutions

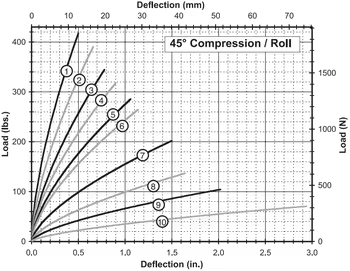

Static-Load Curve

JGX-0480A-37A Customized Steel Wire Rope Vibration Isolator for Precise Vibration Control Solutions

No. Model

Max Static Load

(kg)

Max Deflection

(mm)

KV(Vibration)

(KN/m)

Ks(Shock)

(KN/m)

1

JGX-0480A-75A 75 8.6 578 363
2 JGX-0480A-72A 72 11.7 455 252
3 JGX-0480A-61A 61 13.7 347 189
4 JGX-0480A-59A 59 15.7 301 152
5 JGX-0480A-52A 52 18.8 244 117
6 JGX-0480A-50A 50 20.8 212 96
7 JGX-0480A-37A 37 26.9 136 58
8 JGX-0480A-24A 24 29.5 82 33
9 JGX-0480A-18A 18 36.6 54 21
10 JGX-0480A-12A 12 52.8 29 10


JGX-0480A-37A Customized Steel Wire Rope Vibration Isolator for Precise Vibration Control Solutions

No. Model

Max Static Load

(kg)

Max Deflection

(mm)

KV(Vibration)

(KN/m)

Ks(Shock)

(KN/m)

1

JGX-0480A-75A 54.5 12.7 341 179
2 JGX-0480A-72A 52.2 16.8 258 126
3 JGX-0480A-61A 44.1 19.8 197 93
4 JGX-0480A-59A 41.7 22.9 172 75
5 JGX-0480A-52A 38.1 26.9 141 58
6 JGX-0480A-50A 35.7 29 123 49
7 JGX-0480A-37A 26.5 38.1 77 28
8 JGX-0480A-24A 18.1 41.7 49 18
9 JGX-0480A-18A 13.9 51.3 33 11
10 JGX-0480A-12A 9.3 74.7 18 5.3


JGX-0480A-37A Customized Steel Wire Rope Vibration Isolator for Precise Vibration Control Solutions

No. Model

Max Static Load

(kg)

Max Deflection

(mm)

KV(Vibration)

(KN/m)

Ks(Shock)

(KN/m)

1

JGX-0480A-75A 36.3 8.6 224 224
2 JGX-0480A-72A 36.3 11.7 156 156
3 JGX-0480A-61A 34.1 14.7 112 112
4 JGX-0480A-59A 31.7 16.8 93 93
5 JGX-0480A-52A 29.5 19.8 70 70
6 JGX-0480A-50A 27.2 21.8 60 60
7 JGX-0480A-37A 20.4 27.9 35 35
8 JGX-0480A-24A 5.9 31.0 11 11
9 JGX-0480A-18A 4.1 38.1 5.3 5.3
10 JGX-0480A-12A 2.2 55.9 2.3 2.3

* The material of the mounting splint *
Stainless Steel or Aluminum can be selected
* Surface treatment options for aluminum alloy plywood *
* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;

* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
