JGX-0958 Compact Wire Rope Isolator Perfect Solution for Vibration Shock Control

Model Number : JGX-0958

Place of Origin : china

MOQ : 10

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

summary:
Wire rope isolator (JGX) is a common isolation device, usually composed of multiple stranded wire ropes and fixed support components at both ends. Its main function is to reduce or eliminate the vibration and impact force transmitted to buildings or mechanical equipment through the flexibility and elasticity of the steel wire rope, thereby protecting the equipment and improving the stability of the working environment.

JGX-0958 Compact Wire Rope Isolator Perfect Solution for Vibration Shock Control

Mounting Options

JGX-0958 Compact Wire Rope Isolator Perfect Solution for Vibration Shock Control

SIZE PARAMETER:

Model

“H”±3.30

“W”

Unit weight

Mounting options

Thru hole(mm)

Thread(mm)

JGX-0958D-149A	71	84	1.65	A,B,C,D,E,S	∅9.0+0.13 -0.38	M8×1.25	90
JGX-0958D-138A	74	89	1.70
JGX-0958D-108A	76	105	1.80
JGX-0958D-99A	83	108	1.89
JGX-0958D-95A	89	108	1.95
JGX-0958D-54A	105	121	2.15
JGX-0958D-43A	108	140	2.35

Technical Data Sheet:

Vertical load

JGX-0958 Compact Wire Rope Isolator Perfect Solution for Vibration Shock Control

Curve number

Model

Maximum static load(N)

Maximum deformation(mm)

Vibration stiffness

KN/m)

Impact stiffness(KN/m)

1	JGX-0958D-149A	149	34.0	366	179
2	JGX-0958D-138A	138	37.1	320	152
3	JGX-0958D-108A	108	40.1	242	110
4	JGX-0958D-99A	99	44.7	205	91
5	JGX-0958D-95A	95	49.8	182	79
6	JGX-0958D-54A	54	66.0	86	33
7	JGX-0958D-43A	43	68.1	67	26

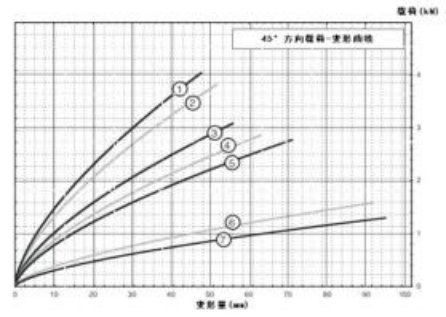

45 ° directional load:

JGX-0958 Compact Wire Rope Isolator Perfect Solution for Vibration Shock Control

Curve number

Model

Maximum static load(N)

Maximum deformation(mm)

Vibration stiffness(KN/m)

Impact stiffness(KN/m)

1	JGX-0958D-149A	120.3	47.8	236	103
2	JGX-0958D-138A	111.2	51.8	208	88
3	JGX-0958D-108A	90.8	55.9	159	65
4	JGX-0958D-99A	84.0	63.0	137	54
5	JGX-0958D-95A	79.4	71.1	123	47
6	JGX-0958D-54A	47.7	91.9	60	21
7	JGX-0958D-43A	38	95	47	16

Lateral load:

JGX-0958 Compact Wire Rope Isolator Perfect Solution for Vibration Shock Control

Curve number

Model

Maximum static load(N)

Vibration stiffness(KN/m)

Impact stiffness(KN/m

曲线序号	型号	最大静载荷(kg)	最大变形(mm)	振动刚度(KN/m)	冲击刚度(KN/m)
1	JGX-0958D-149A	93.1	36.1	130	130
2	JGX-0958D-138A	88.5	39.1	112	112
3	JGX-0958D-108A	68.1	42.2	77	77
4	JGX-0958D-99A	63.6	47.2	65	65
5	JGX-0958D-95A	61.3	52.8	60	60
6	JGX-0958D-54A	27.2	68.1	27	27
7	JGX-0958D-43A	20.4	71.7	19	19

1. Efficient vibration isolation performance: Steel wire rope isolators can effectively absorb and reduce vibration transmission, effectively isolating vibration sources.
2. Strong durability: The steel wire rope isolator is made of durable steel wire rope, which has a long service life and can operate stably in harsh environments.
3. Adjustable: Steel wire rope isolators can usually be adjusted according to actual needs to meet the isolation requirements of different occasions.
4. Easy installation: Installing wire rope isolators is relatively simple and can be customized according to specific installation scenarios and requirements.
Application:
1. Building structure
2. Industrial equipment
3. Bridges
4. Pipeline

Product Tags:

JGX-0958 Wire Rope Isolator

Vibration Shock Control Wire Rope Isolator
