JGX-0320 Compact Wire Rope Isolator Vibration Shock Control Solution

Product Categories
Xi'an Hoan Microwave Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

JGX-0320 Compact Wire Rope Isolator Vibration Shock Control Solution

  • 1
  • 2

Model Number : JGX-0320

Place of Origin : china

MOQ : 10

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

summary:
Wire rope isolator (JGX) is a common isolation device, usually composed of multiple stranded wire ropes and fixed support components at both ends. Its main function is to reduce or eliminate the vibration and impact force transmitted to buildings or mechanical equipment through the flexibility and elasticity of the steel wire rope, thereby protecting the equipment and improving the stability of the working environment.

JGX-0320 Compact Wire Rope Isolator Vibration Shock Control Solution

Mounting Options

JGX-0320 Compact Wire Rope Isolator Vibration Shock Control Solution

SIZE PARAMETER:

Model “H”±1.5 “W” Unit weight Mounting options Thru hole(mm) Thread(mm) C'sink(°)(°)
JGX-0320D-22A 28 36 0.228 B,D,E ∅6.9±0.13 M6×1.0 90
JGX-0320D-20A 20 38 0.228 A,B,C,D,E,S
JGX-0320D-17A 33 41 0.247
JGX-0320D-16A 36 43 0.247
JGX-0320D-14.5A 38 46 0.247
JGX-0320D-13.5A 41 48 0.285
JGX-0320D-12A 43 51 0.285

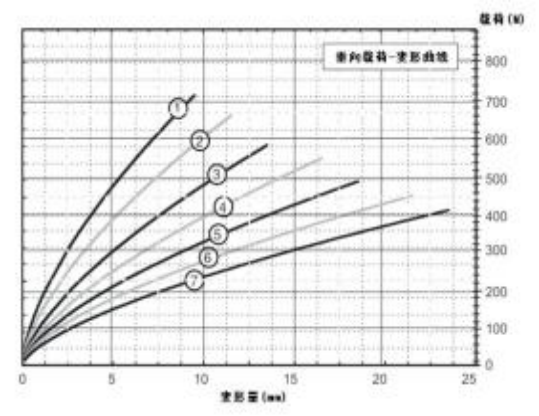

Vertical load

JGX-0320 Compact Wire Rope Isolator Vibration Shock Control Solution
Curve number Model Maximum static load(N) Maximum deformation(mm)

Vibration stiffness

KN/m)

 Impact stiffness(KN/m)
1 JGX-0320D-22A 22 9.7 154 91
2 JGX-0320D-20A 20 11.7 124 68
3 JGX-0320D-17A 17 13.7 95 51
4 JGX-0320D-16A 16 16.8 78 39
5 JGX-0320D-14.5A 14.5 18.8 67 32
6 JGX-0320D-13.5A 13.5 21.8 57 25
7 JGX-0320D-12A 12 23.9 46 21

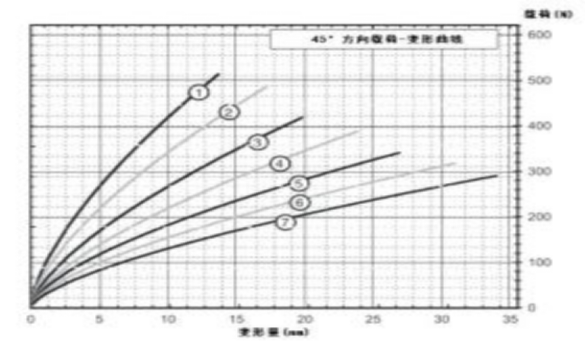

45 ° directional load:

JGX-0320 Compact Wire Rope Isolator Vibration Shock Control Solution

Curve number Model Maximum static load(N) Maximum deformation(mm) Vibration stiffness(KN/m) Impact stiffness(KN/m)
1 JGX-0320D-22A 15.2 13.7 86 46
2 JGX-0320D-20A 14.1 17.3 70 35
3 JGX-0320D-17A 12.0 19.8 53 25
4 JGX-0320D-16A 11.3 23.9 44 20
5 JGX-0320D-14.5A 10.4 26.9 39 16
6 JGX-0320D-13.5A 9.6 31 32 12
7 JGX-0320D-12A 8.6 34 26 11

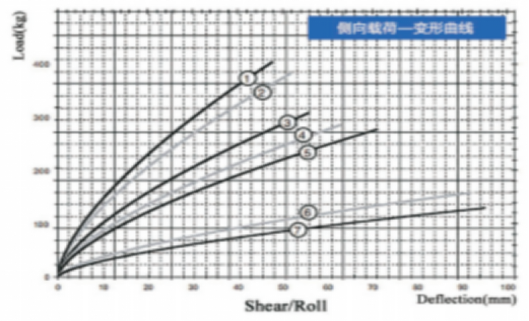

Lateral load:

JGX-0320 Compact Wire Rope Isolator Vibration Shock Control Solution

Curve number Model Maximum static load(N) Maximum deformation(mm) Vibration stiffness(KN/m) Vibration stiffness(KN/m)
1 JGX-0320D-22A 11.3 9.7 56 56
2 JGX-0320D-20A 10.0 11.7 43 43
3 JGX-0320D-17A 9.5 14.7 31 31
4 JGX-0320D-16A 8.7 17.8 25 25
5 JGX-0320D-14.5A 8.2 19.8 19 19
6 JGX-0320D-13.5A 7.2 22.9 16 16
7 JGX-0320D-12A 6.3 25.9 12 12

characteristic:
1. Efficient vibration isolation performance: Steel wire rope isolators can effectively absorb and reduce vibration transmission, effectively isolating vibration sources.
2. Strong durability: The steel wire rope isolator is made of durable steel wire rope, which has a long service life and can operate stably in harsh environments.
3. Adjustable: Steel wire rope isolators can usually be adjusted according to actual needs to meet the isolation requirements of different occasions.
4. Easy installation: Installing wire rope isolators is relatively simple and can be customized according to specific installation scenarios and requirements.
Application:
1. Building structure
2. Industrial equipment
3. Bridges
4. Pipeline

Product Tags:

Shock Control Wire Rope Vibration Isolator



Compact Wire Rope Vibration Isolator



JGX-0320 Wire Rope Vibration Isolator


Wholesale JGX-0320 Compact Wire Rope Isolator Vibration Shock Control Solution from china suppliers
