Customized Products The Ultimate Solution for Vibration and Noise Reduction GX-60AN Wire Rope Vibration Isolators
GX-N Series
Superior Protection, Stable Operation - Exploring Xi'an Hoan Microwave's GX-N Series Wire Rope Vibration Isolators
In the world of precision instruments, high-end equipment, and sensitive electronic devices, even tiny vibrations pose potential threats. Xi'an Hoan Microwave Co., Ltd., a leader in domestic vibration and noise reduction, deeply understands this challenge and has launched its flagship product - the GX-N Series wire rope vibration isolators. This product is more than just a component; it is a "guardian" for the stable operation of your critical equipment.
The core of the GX-N Series lies in its ingenious design. It uses high-quality stainless steel wire rope as the elastic element, formed through precision winding and curing processes. This structure endows it with superior performance unmatched by traditional rubber or spring isolators.
- Excellent three-way equal stiffness vibration isolation performance for comprehensive protection from vibrations in any direction
- All-metal structure with exceptional environmental adaptability, resisting extreme temperatures, oil, mold, and salt spray
- Long service life that far exceeds organic material isolators, ensuring reliability for long-term deployed equipment
- -grade production standards with strict quality control from material selection to final testing
Whether safeguarding the precision scanning of radars or maintaining clear imaging of medical imaging equipment, the GX-N Series is a trustworthy choice. Choosing the GX-N means choosing peace of mind and durability.

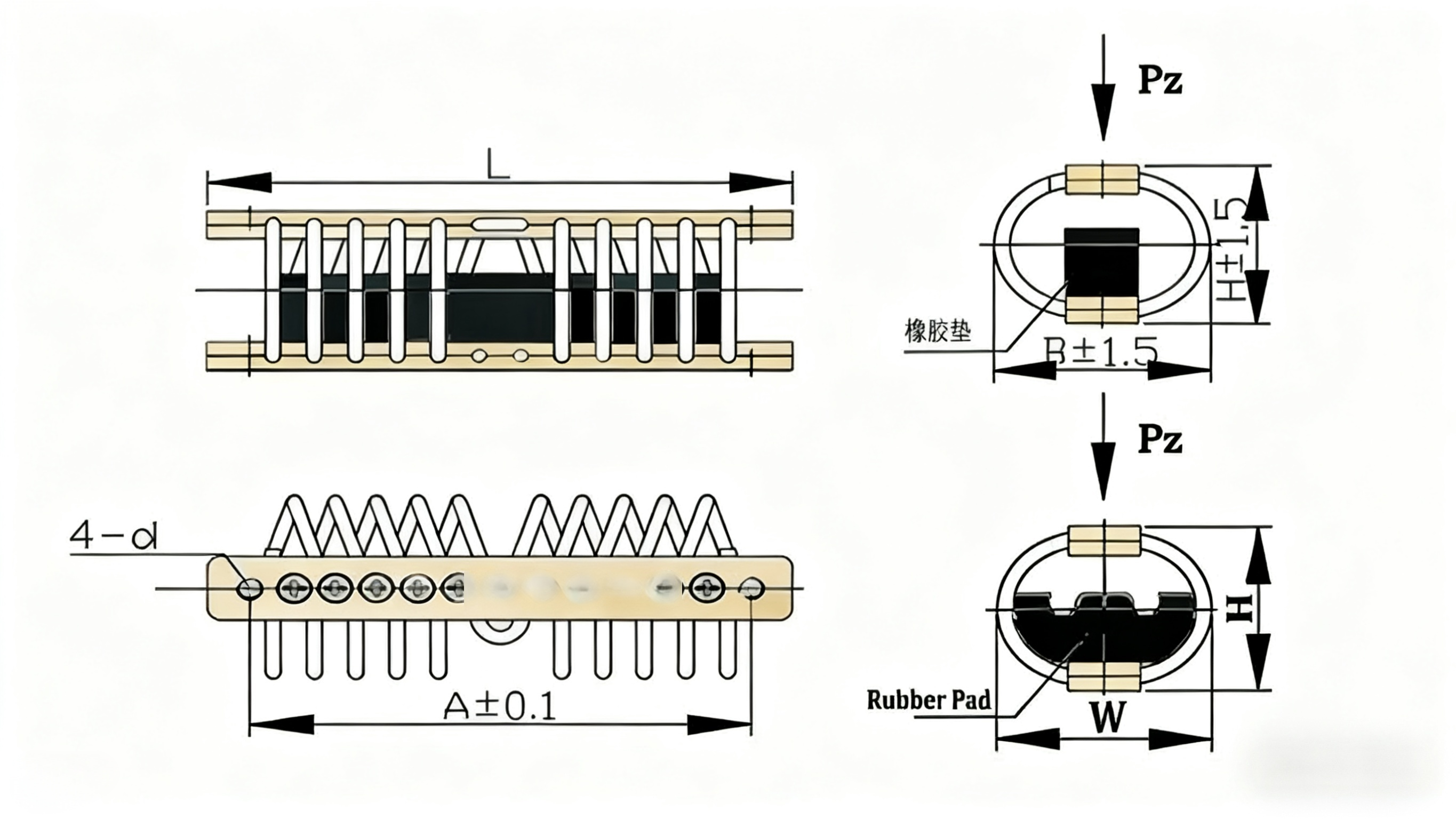

Structural dimension diagram
Model Specifications
| Model |
L(mm) |
A±0.3 |
H±1.5 |
W±1.5 |
d |
| GX-10A(N) |
55 |
49 |
21 |
26 |
M3-7H |
| GX-20A(N) |
84 |
68 |
29 |
35 |
M5-7H |
| GX-30A(N) |
113 |
97 |
32.5 |
40 |
M5-7H |
| GX-40A(N) |
113 |
97 |
32.5 |
40 |
M5-7H |
| GX-50A(N) |
113 |
97 |
33 |
40 |
M5-7H |
| GX-60A(N) |
133 |
117 |
31 |
40 |
M5-7H |

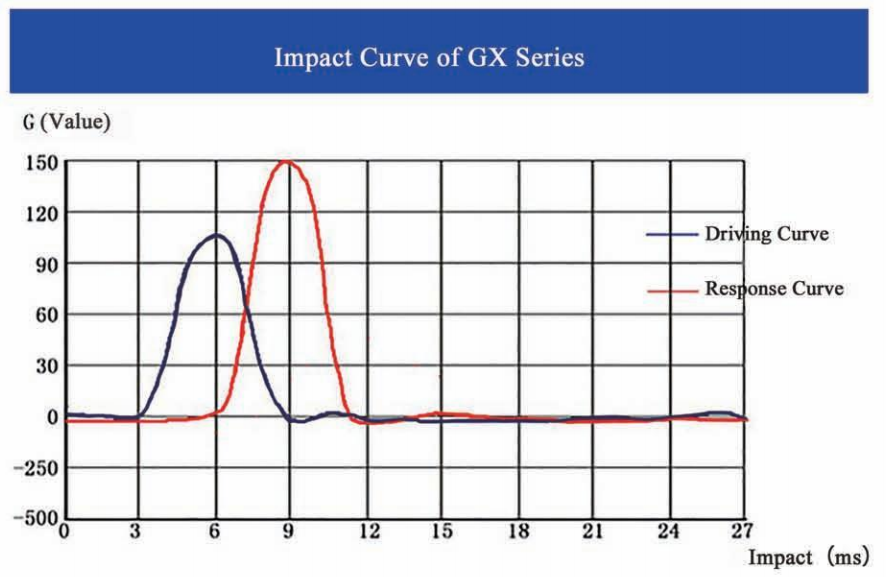

Vibration and impact curve of GX-N series
Vibration
Impact
Technical Parameter Table
| Technical Parameter |
GX-10A(N) |
GX-20A(N) |
GX-30A(N) |
GX-40A(N) |
GX-50A(N) |
GX-60A(N) |
| Pz Nominal Load(N) |
Downward Pressure |
| Resonance Magnification |
≤4 |
| High Vibrating Efficiency |
≥95 |
| Working Temperature |
-55～+120 |
| Shock(Ks) |
30g/6ms |
| Peak Response G |
≤3.5km/s2 |
| Vibration (Kv) |
Accord with National Standard GJB150-16 |
